Description

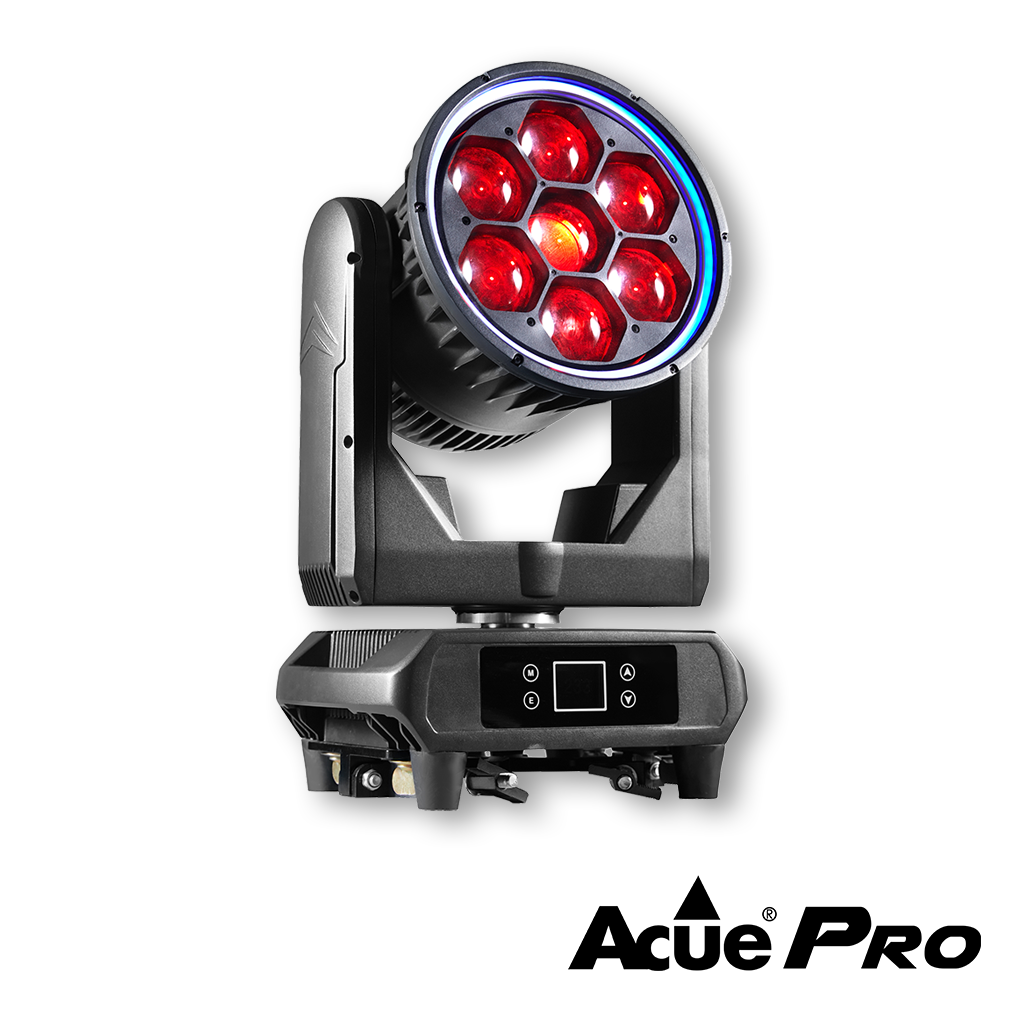

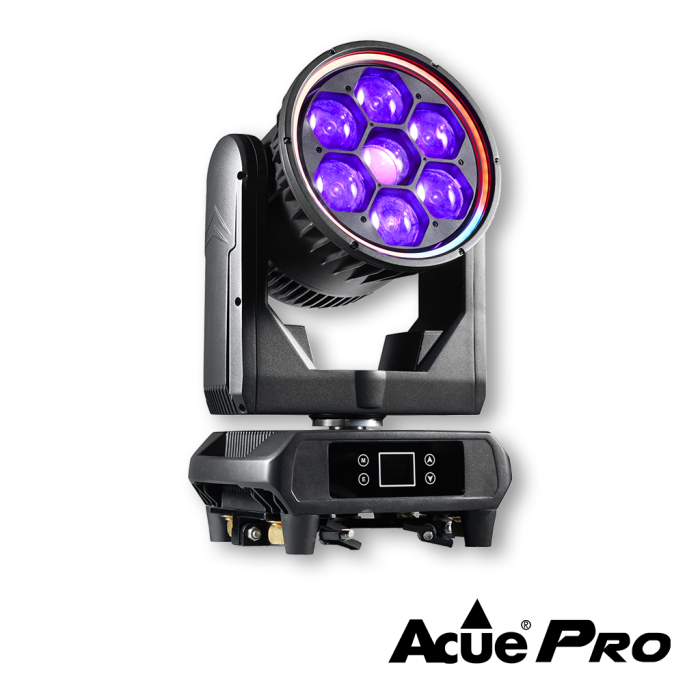

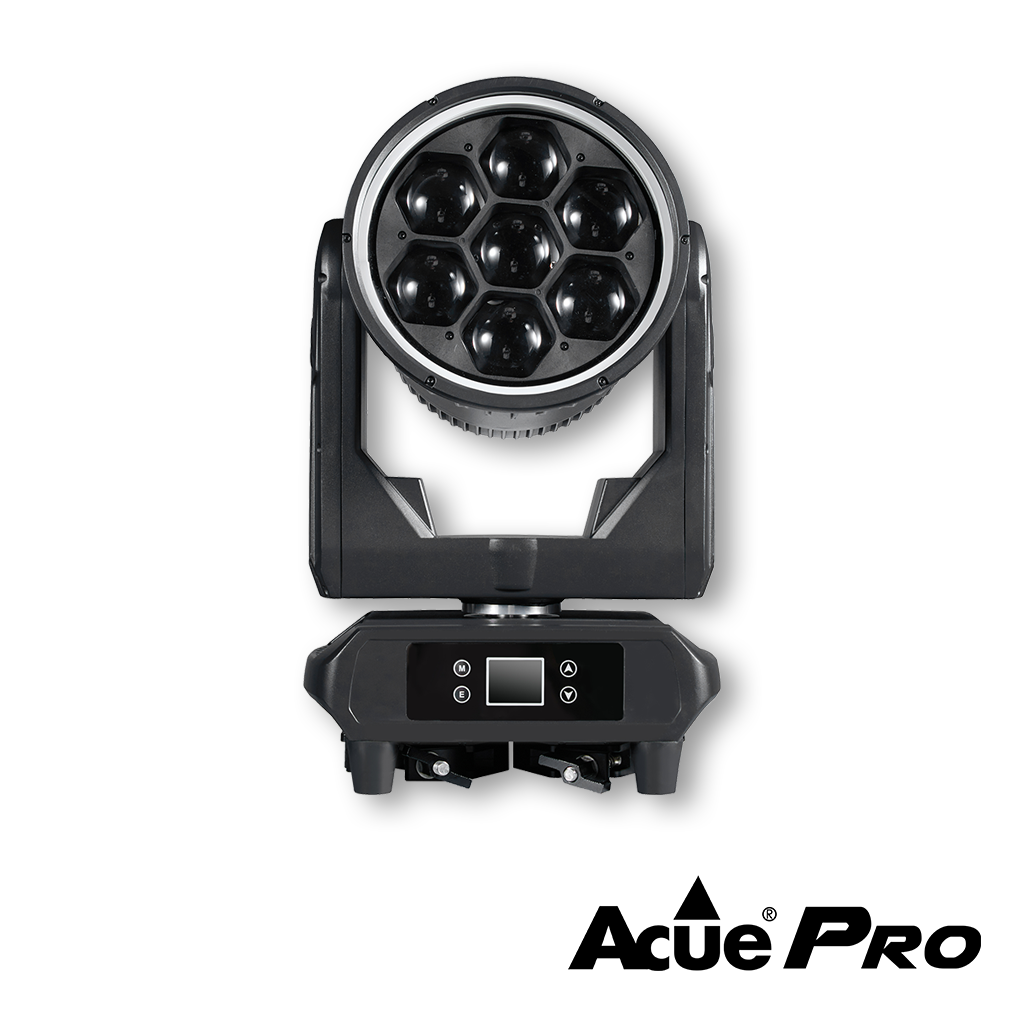

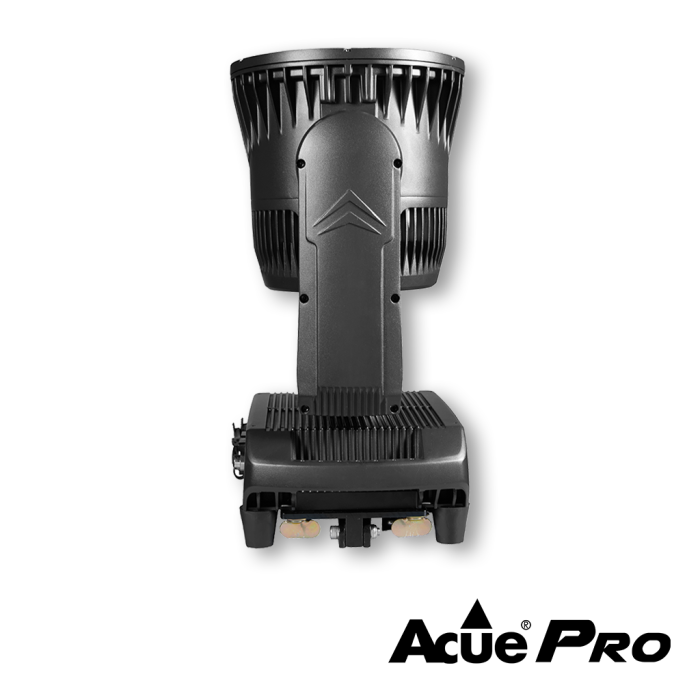

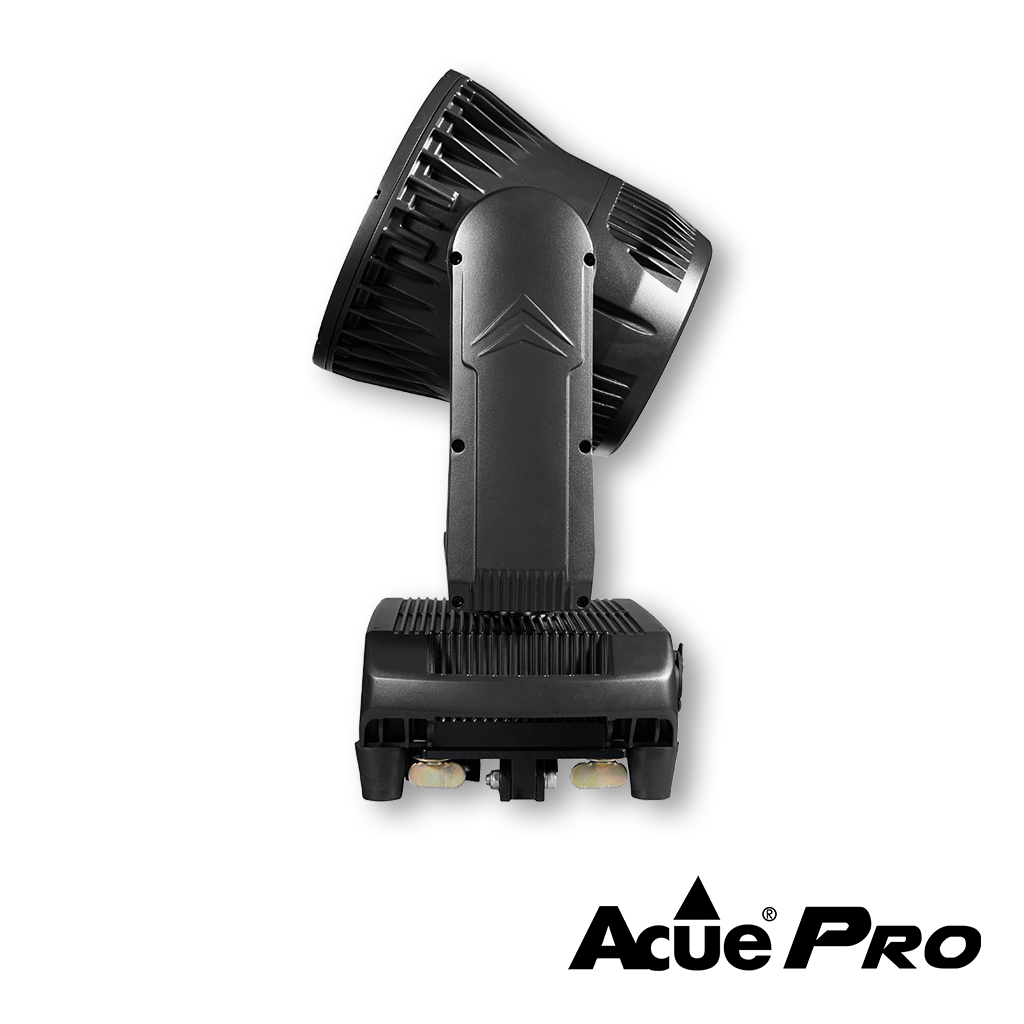

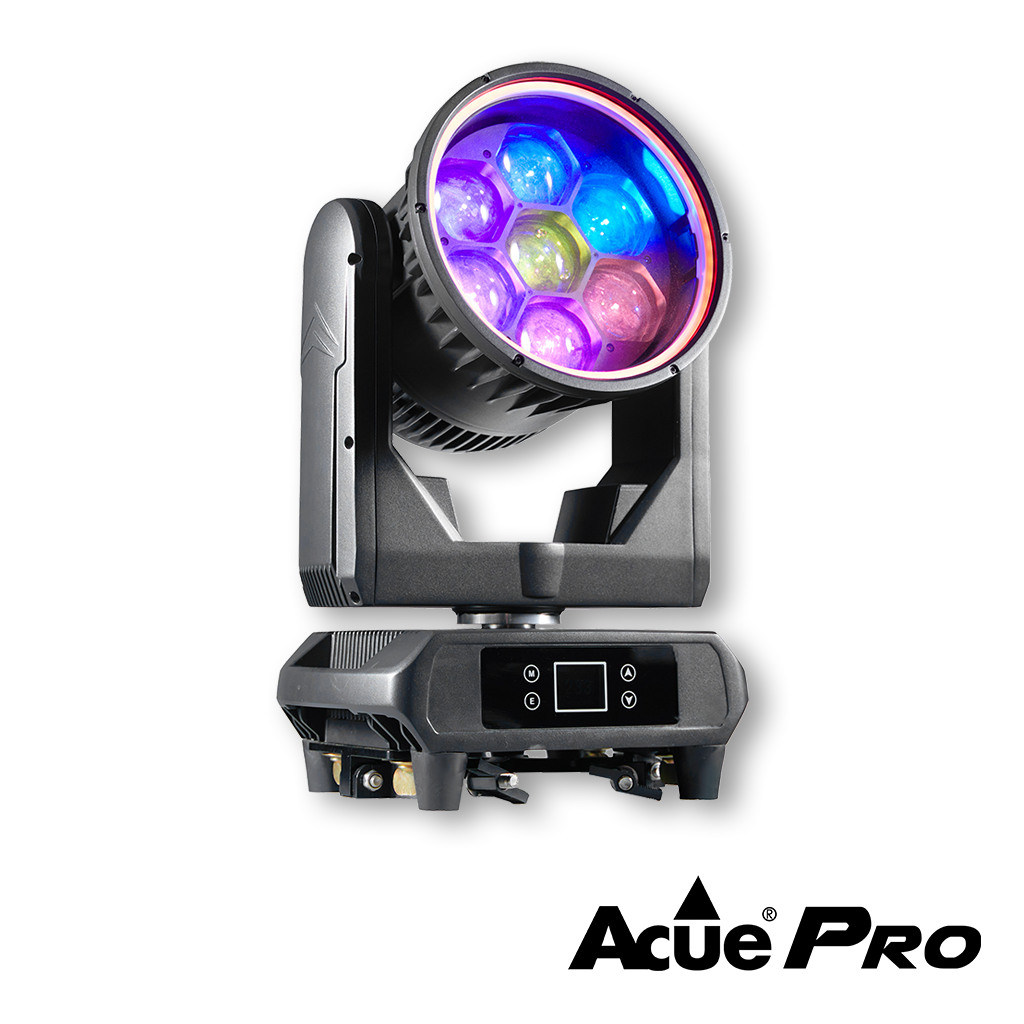

The Acue Flex 760 IP is one of our newest IP65 rated professional moving head fixtures. It is a compact yet powerful LED wash fixture loaded with features not usually available in traditional moving head wash fixtures.

The Acue Flex 760 IP utilizes 7 x 60W RGBW LED’s as its light source as well as a LED Halo effect ring (56*0.2W RGB SMD LED’s). This fixture’s life span is rated at or above 50,000 hrs. The Flex 760 IP also features waterproof Seetronic IP65 rated power and DMX connectors as well as a waterproof touch control display system. The Flex 760 IP also features a sealed housing which doesn’t allow dust and dirt to enter the fixture.

IP65 rated fixtures are becoming an industry standard not just for outdoor use but more as a maintenance-free solution for rental houses and permanent installations.  This fixture also features a rotating face which creates a kaleidoscope effect as well as full pixel control when used in select channel modes. If you do not have the ability to run the fixture in higher channel modes and are short on the amount of available channels, the 24,30 and 37 channel modes also feature built in macro shapes as well as animations and background and foreground color control to create immersive light patterns.

Don’t  get caught in the rain… Choose The Flex series from Acue Lighting.

USER MANUAL: Acue Lighting Flex 760 IP User Manual



Light Source 7x60W RGBW LED’s (individually controllable in select channel modes) Halo Ring: 56×0.2W RGB LED’s
Light Source Life ≥ 50,000 hours
Dimmer 0-100% Linear Dimmer Control
Pan 540˚ 16bit
Tilt 270˚ 16bit
Zoom 4.5˚- 45˚ Mechanical/Electronic Zoom Control
Special Effect Indexing & Unlimited Rotation Of Front Lens To Create Kaleidoscope Effect
Shutter Variable (1-50 hz), random strobe, multiple strobe modes
DMX Channels 15, 24, 30, 37, 53, 58, 81 & 95 DMX Channel Modes

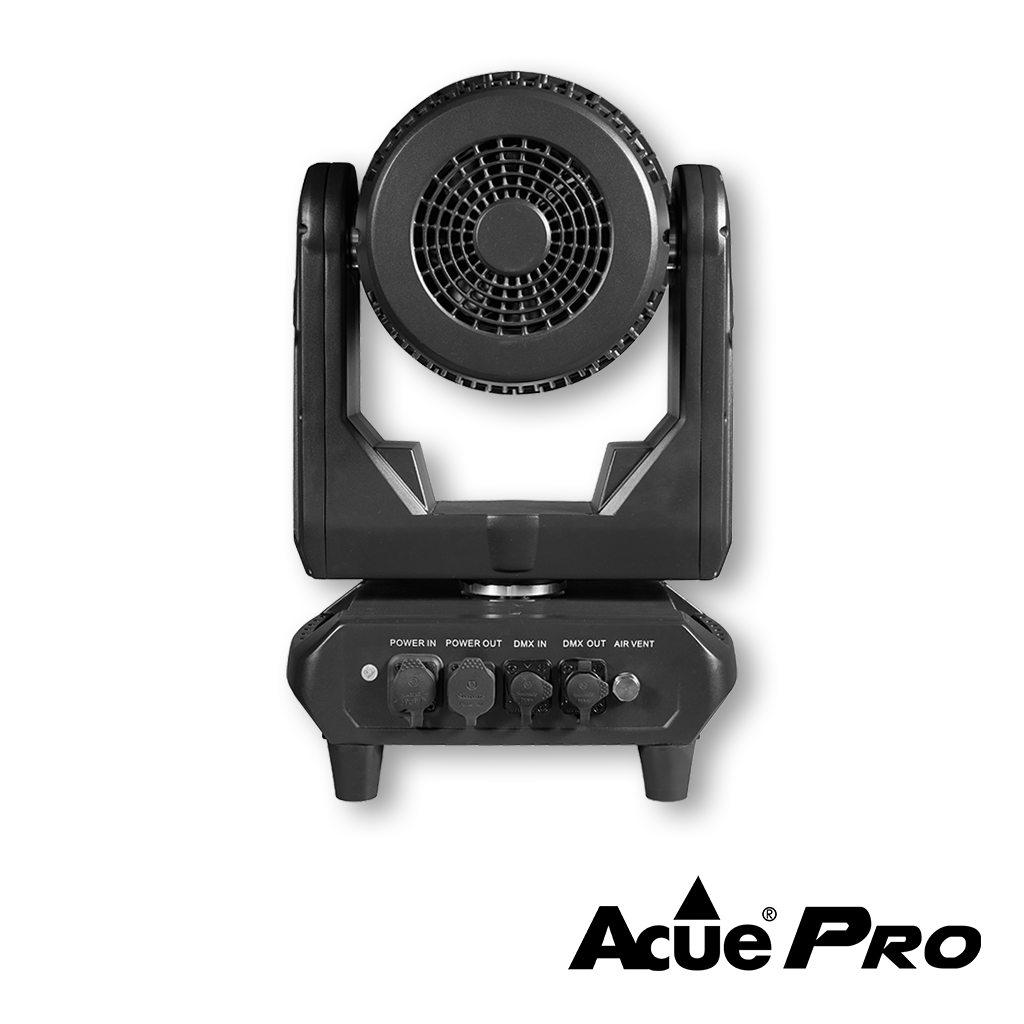

DMX In/Out 3 pin Waterproof Seetronic DMX in/out
Max Power Draw 500W
Power Input 100-240V, 50/60Hz Seetronic X-Series Waterproof Plugs In/Out
Fixture Weight 26.9 lb
Fixture Size 12.1″ x 8.4″ x 18.3″
IP Rating IP 65
